Correlation between transcranial Doppler ultrasound measurements of the middle cerebral artery and consciousness score and blood biochemical indexes in patients after craniotomy

doi:10.11817/j.issn.1673-9248.2023.03.005

Abstract

Abstract:

Objective

To evaluate the correlation of consciousness score, blood biochemical indicators, and transcranial Doppler ultrasound measurements, and to explore the role of assessing the middle cerebral artery status in patients after the craniotomy to guide clinical decision-making.

Methods

82 patients who underwent craniotomy in the neurological intensive care unit of the First Affiliated Hospital of Xinjiang Medical University from January 2019 to January 2021, were retrospectively collected. The demographic information, admission assessment [including Glasgow Coma Score (GCS) and Acute Physiological and Chronic Health Evaluation (APACHE Ⅱ)], laboratory test indexes, arterial blood gas results, transcranial Doppler ultrasound measurement values, primary vital signs, and the correlation between the observed indexes and the pulsatility index (PI) and resistance index (RI) was analyzed by univariate and multivariate linear regression.

Results

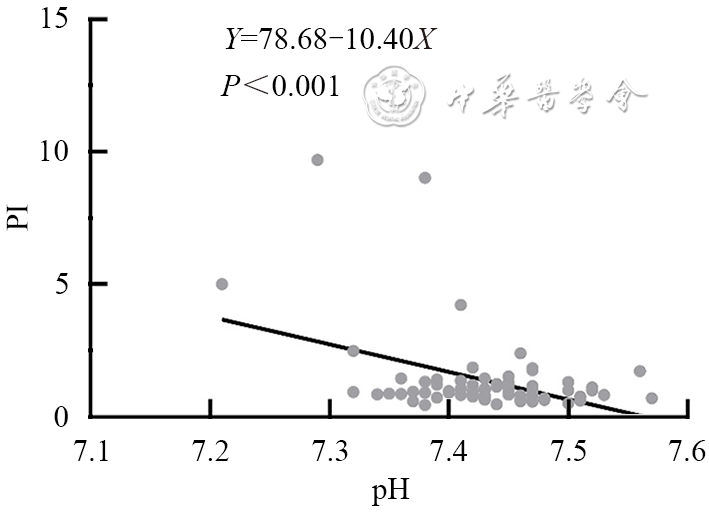

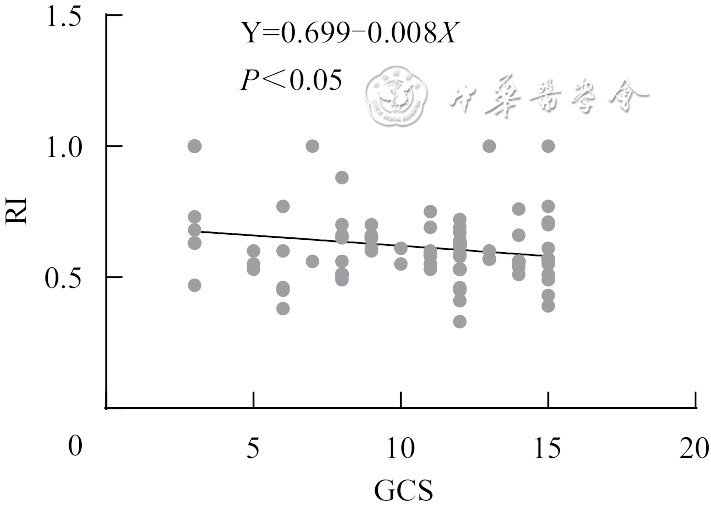

GCS (regression coefficient=0.009, P=0.038), APACHE Ⅱ (regression coefficient=0.009, P＜0.001), PI (regression coefficient=0.070, P＜0.001) were linear correlated with RI. The pH value (regression coefficient=-5.328, P=0.007) and RI (regression coefficient=6.630, P＜0.001) were linearly correlated with PI.

Conclusion

Indirect assessment of middle cerebral artery vascular elasticity, resistance, and blood flow by GCS, APACHE Ⅱ, and pH can be attempted in the clinic to guide clinical decision-making further.

Key words: Transcranial Doppler ultrasound, Resistance index, Pulsatility index, Intensive care unit, Middle cerebral artery

Yongkai Li, Tuerxun Tuerhong, Jianzhong Yang. Correlation between transcranial Doppler ultrasound measurements of the middle cerebral artery and consciousness score and blood biochemical indexes in patients after craniotomy[J]. Chinese Journal of Cerebrovascular Diseases(Electronic Edition), 2023, 17(03): 221-226.

/ / Recommend

Add to citation manager EndNote|Ris|BibTeX

URL: https://zhnxgbzz.cma-cmc.com.cn/EN/10.11817/j.issn.1673-9248.2023.03.005

https://zhnxgbzz.cma-cmc.com.cn/EN/Y2023/V17/I03/221

Figures/Tables 8

影响因素	数值	RI		PI
影响因素	数值	r值	P值	r值	P值
基本信息
年龄（岁， $x ¯$ ±s）	49.98±14.91	9.286	0.003	4.462	0.038
男/女（例）	46/36	0.874	0.353	0.184	0.669
入院评估
GCS[分，M（Q_R）]	11.00（8.00，13.00）	3.413	0.068	4.287	0.042
APACHE Ⅱ[分，M（Q_R）]	12.00（8.00，16.00）	11.488	0.001	4.460	0.038
实验室检查指标
pH值[M（Q_R）]	7.45（7.41，7.47）	8.358	0.005	16.901	＜0.001
PCO₂（mmHg， $x ¯$ ±s）	34.88±5.88	3.130	0.081	0.900	0.346
PO₂[mmHg，M（Q_R）]	133.00（104.00，157.50）	1.984	0.163	0.087	0.769
甘油三酯[mmol/L，M（Q_R）]	1.16（0.88，1.63）	0.165	0.686	0.138	0.712
胆固醇[mmol/L，M（Q_R）]	3.83（3.24，4.46）	0.057	0.812	0.178	0.674
高密度脂蛋白[mmol/L，M（Q_R）]	1.00（0.78，1.30）	0.430	0.514	0.071	0.790
低密度脂蛋白[mmol/L，M（Q_R）]	2.35（1.89，3.41）	0.119	0.731	0.006	0.939
TCD测量数值
Vp（cm/s， $x ¯$ ±s）	90.35±29.03	22.251	0.001	16.305	＜0.001
Vm[cm/s，M（Q_R）]	53.00（42.00，68.50）	69.430	0.001	27.640	＜0.001
Vd[cm/s，M（Q_R）]	36.00（26.50，45.00）	118.896	0.001	28.740	＜0.001
PI[M（Q_R）]	0.99（0.81，1.20）	90.351	0.001	-	-
RI[M（Q_R）]	0.60（0.53，0.67）	-	-	90.351	0.001
基本生命体征
体温[℃，M（Q_R）]	37.40（36.60，37.85）	0.565	0.454	0.144	0.705
心率（次/min， $x ¯$ ±s）	82.65±15.09	0.744	0.391	0.576	0.450
收缩压（mmHg， $x ¯$ ±s）	135.65±20.79	0.022	0.884	1.248	0.267
舒张压（mmHg， $x ¯$ ±s）	73.68±13.99	1.038	0.311	1.716	0.194
呼吸频率[次/min，M（Q_R）]	15.00（15.00，18.00）	0.001	0.989	0.001	0.970
SpO₂[%，M（Q_R）]	99.00（98.00，100.00）	2.332	0.131	1.347	0.249

影响因素	数值	RI		PI
影响因素	数值	r值	P值	r值	P值
基本信息
年龄（岁， $x ¯$ ±s）	49.98±14.91	9.286	0.003	4.462	0.038
男/女（例）	46/36	0.874	0.353	0.184	0.669
入院评估
GCS[分，M（Q_R）]	11.00（8.00，13.00）	3.413	0.068	4.287	0.042
APACHE Ⅱ[分，M（Q_R）]	12.00（8.00，16.00）	11.488	0.001	4.460	0.038
实验室检查指标
pH值[M（Q_R）]	7.45（7.41，7.47）	8.358	0.005	16.901	＜0.001
PCO₂（mmHg， $x ¯$ ±s）	34.88±5.88	3.130	0.081	0.900	0.346
PO₂[mmHg，M（Q_R）]	133.00（104.00，157.50）	1.984	0.163	0.087	0.769
甘油三酯[mmol/L，M（Q_R）]	1.16（0.88，1.63）	0.165	0.686	0.138	0.712
胆固醇[mmol/L，M（Q_R）]	3.83（3.24，4.46）	0.057	0.812	0.178	0.674
高密度脂蛋白[mmol/L，M（Q_R）]	1.00（0.78，1.30）	0.430	0.514	0.071	0.790
低密度脂蛋白[mmol/L，M（Q_R）]	2.35（1.89，3.41）	0.119	0.731	0.006	0.939
TCD测量数值
Vp（cm/s， $x ¯$ ±s）	90.35±29.03	22.251	0.001	16.305	＜0.001
Vm[cm/s，M（Q_R）]	53.00（42.00，68.50）	69.430	0.001	27.640	＜0.001
Vd[cm/s，M（Q_R）]	36.00（26.50，45.00）	118.896	0.001	28.740	＜0.001
PI[M（Q_R）]	0.99（0.81，1.20）	90.351	0.001	-	-
RI[M（Q_R）]	0.60（0.53，0.67）	-	-	90.351	0.001
基本生命体征
体温[℃，M（Q_R）]	37.40（36.60，37.85）	0.565	0.454	0.144	0.705
心率（次/min， $x ¯$ ±s）	82.65±15.09	0.744	0.391	0.576	0.450
收缩压（mmHg， $x ¯$ ±s）	135.65±20.79	0.022	0.884	1.248	0.267
舒张压（mmHg， $x ¯$ ±s）	73.68±13.99	1.038	0.311	1.716	0.194
呼吸频率[次/min，M（Q_R）]	15.00（15.00，18.00）	0.001	0.989	0.001	0.970
SpO₂[%，M（Q_R）]	99.00（98.00，100.00）	2.332	0.131	1.347	0.249

影响因素	B值	标准误	β值	95%CI	t值	P值
常量	0.321	0.074	-	0.174~0.469	4.349	＜0.001
GCS	0.009	0.004	0.232	0.000~0.018	2.106	0.038
APACHE Ⅱ	0.009	0.003	0.369	0.004~0.015	3.343	＜0.001
PI	0.070	0.007	0.696	0.055~0.084	9.316	＜0.001
年龄	0.001	0.001	0.135	0.000~0.003	1.772	0.08
pH值	-0.067	0.232	-0.027	-0.530~0.396	-0.288	0.774
PCO₂	0.003	0.002	0.125	-0.001~0.007	1.538	0.128

影响因素	B值	标准误	β值	95%CI	t值	P值
常量	36.836	14.486	-	8.001~65.670	2.543	0.013
pH值	-5.328	1.927	-0.214	-9.164~-1.491	-2.764	0.007
RI	6.630	0.774	0.662	5.088~8.171	8.562	＜0.001
年龄	0.006	0.008	0.058	-0.010~0.021	0.734	0.465
GCS	-0.088	0.043	-0.227	-0.175~-0.002	-2.037	0.050
APACHE Ⅱ	-0.037	0.030	-0.147	-0.095~0.022	-1.237	0.220

References 18

1	Wang Q, Wang T, Liu Y, et al. [The Monitoring and Application of Transcranial Doppler Ultrasound in Patients with Severe Neurovascular Diseases] [J]. Sichuan Da Xue Xue Bao Yi Xue Ban, 2020, 51(4): 578-581.
2	Bouzat P, Almeras L, Manhes P, et al. Transcranial Doppler to predict neurologic outcome after mild to moderate traumatic brain injury [J]. Anesthesiology, 2016, 125(2): 346-354.
3	Mok V, Ding D, Fu J, et al. Transcranial Doppler ultrasound for screening cerebral small vessel disease [J]. Stroke, 2012, 43(10): 2791-2793.
4	米东华, 杨中华, 杨波, 等. 床旁经颅多普勒在重症脑血管病监护中的应用 [J]. 中国卒中杂志, 2018, 13(5): 521-526.
5	Lau VI, Jaidka A, Wiskar K, et al. Better with ultrasound: transcranial Doppler [J]. Chest, 2020, 157(1): 142-150.
6	Lau VI, Arntfield RT. Point-of-care transcranial Doppler by intensivists [J]. Crit Ultrasound J, 2017, 9(1): 21.
7	李承龙, 马立新, 李勐, 等. 经颅多普勒超声对大脑中动脉狭窄诊断价值的Meta分析 [J]. 中华神经医学杂志, 2018, 17(6): 593-599.
8	Wu J, Wang Y, Wang A, et al. Association between fasting Triglyceride levels and the prevalence of asymptomatic intracranial arterial stenosis in a chinese community-based study [J]. Sci Rep, 2018, 8(1): 5744.
9	Bouzat P, Francony G, Brun J, et al. Detecting traumatic internal carotid artery dissection using transcranial Doppler in head-injured patients [J]. Intensive Care Med, 2010, 36(9): 1514-1520.
10	Lau VI, Jaidka A, Wiskar K, et al. Better with ultrasound: transcranial Doppler [J]. Chest, 2020, 157(1): 142-150.
11	Naqvi J, Yap KH, Ahmad G, et al. Transcranial Doppler ultrasound: a review of the physical principles and major applications in critical care [J]. Int J Vasc Med, 2013, 2013: 629378.
12	Knaus WA, Draper EA, Wagner DP, et al. APACHE II: a severity of disease classification system [J]. Crit Care Med, 1985, 13(10): 818-829.
13	Tian Y, Yao Y, Zhou J, et al. Dynamic APACHE II score to predict the outcome of intensive care unit patients [J]. Front Med (Lausanne), 2021, 8: 744907.
14	Teasdale G, Jennett B. Assessment of coma and impaired consciousness. A practical scale [J]. Lancet, 1974, 304(7872): 81-84.
15	Mehta R, Chinthapalli K. Glasgow coma scale explained [J]. BMJ, 2019, 365: l1296.
16	张园. 大脑中动脉狭窄导致脑白质病变的搏动指数及危险因素相关性分析 [D]. 吉林: 吉林大学, 2019.
17	Feng C, Bai X, Xu Y, et al. Hyperhomocysteinemia associates with small vessel disease more closely than large vessel disease [J]. Int J Med Sci, 2013, 10(4): 408-412.
18	Lefferts WK, DeBlois JP, Augustine JA, et al. Age, sex, and the vascular contributors to cerebral pulsatility and pulsatile damping [J]. J Appl Physiol (1985), 2020, 129(5): 1092-1101.
